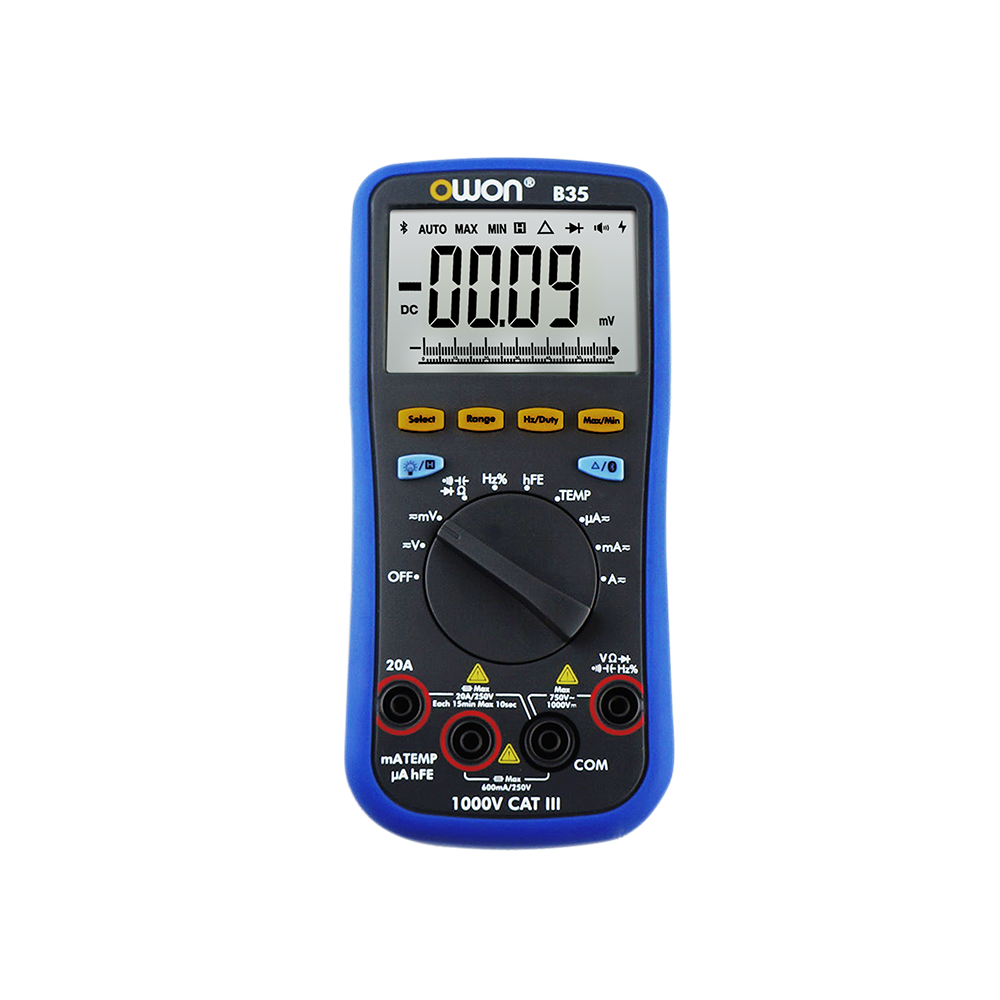

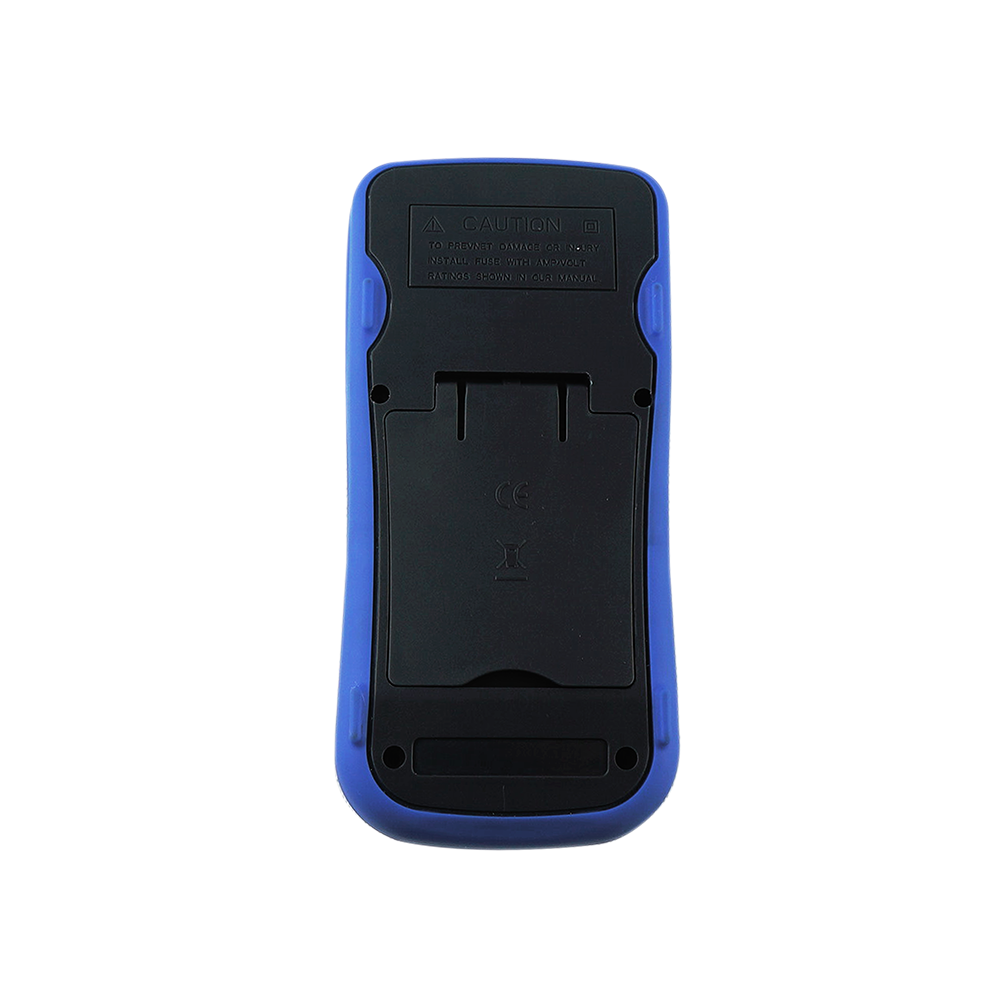

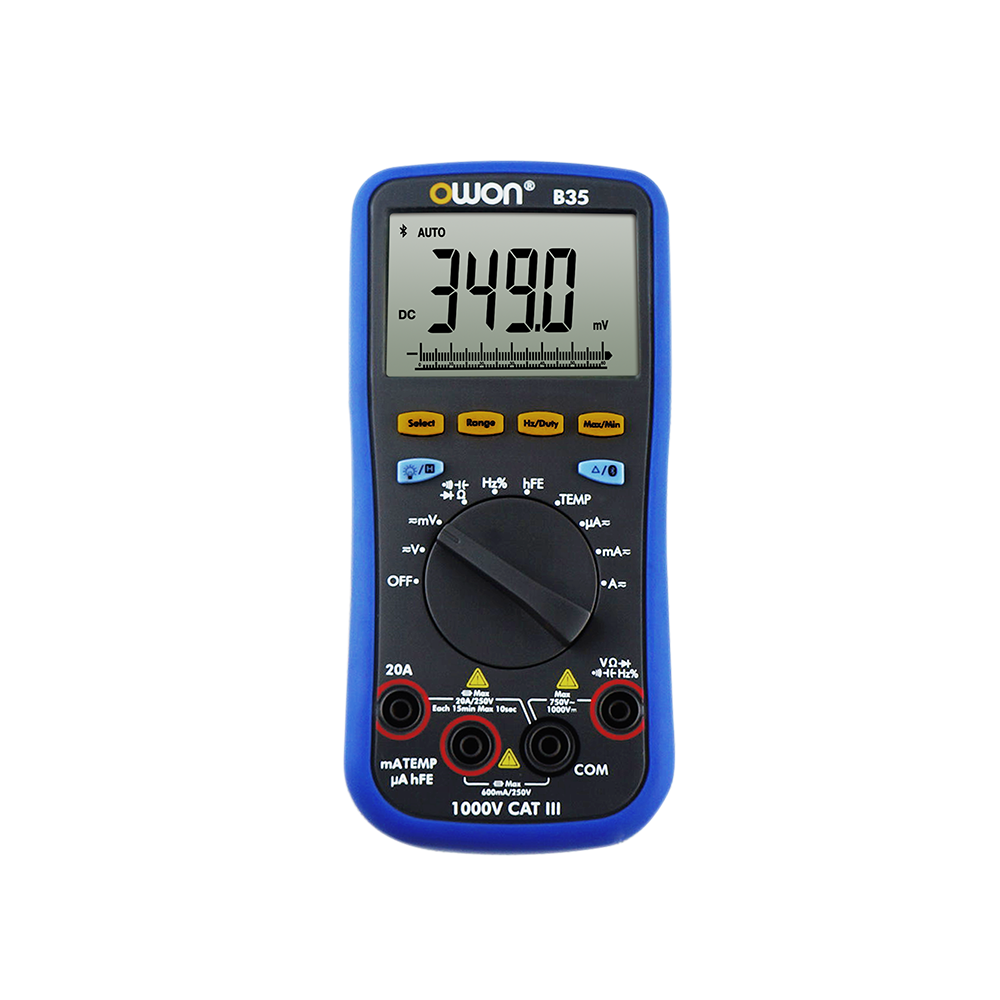

OWON 3 5/6 Digital Multimeter with Bluetooth

+ function as 3 in 1 : datalogger + multimeter + temperature meter
+ multi-connection (more than one device) supported via mobile app
+ the change trend analysis accessible via special chart mode
+ voice warning supported, which assures measurement safety
+ smart voice-reading accessible
+ 3(5/6)-digit full scale reading, achieving higher measurement accuracy than 3(3/4)-digit counterparts
+ smart power-off option extending battery life
+ true RMS value available (only in B35T, and D35T)
+ offline recording function (only in B35+, and B35T+)
+ Bluetooth 2.0 version - supports mobile device with Android 4.0 or above OS
+ Bluetooth 4.0 version - supports mobile device with Android 4.3
or above / iOS 7.0 or above OS, and equipped with ble 4.0 module

Send Inquiry

Product Details

We are known as one of world's leading China manufacturers and suppliers. Welcome to buy the famous brands' owom 3 5/6 digital multimeter with bluetooth, true rms multimeter, OWON b35t, ios multimeter, 6000 count multimeter, bluetooth multimeter with cheap price from us. We have many products in stock at your choice. Consult the quotation with us now.

1. more than 1 device could be monitored, assuring more measurement safety

Several units DMMs possibly communicated with mobile app, freeing people from touching the measured object, human safety fully guaranteed.

2. functioning as multimeter + datalogger

The measured data always updated, and auto- recorded to mobile device, saving labor to do on-site records; the recoding duration, and sampling duration could be customized, accessible in chart mode, facilitating comparison analysis between several DMMs.

3. Offline record function

User don’t have to leave the phone on measure site, just use App to set the record interval and sum points. Multimeter will record the data itself and store them in its memory. Load the data from multimeter when there is analysis requirement.

Video

B35T+ Data Record Function
B35 App Operation
B35 Brief Introduction

Specifications

Model		D35 / D35T / B35 / B35+ / B35T / B35T+
		Measurement Range	Resolution	Accuracy
DC Voltage	mV	60.00mV / 600.0mV	0.01mV	±(0.5%+2 digit)
	V	60.00mV / 600.0mV / 6.000V / 60.00V	0.1mV
	V	600.0V / 1000V	0.1V
AC Voltage	mV	60.00mV / 600.0mV	0.01mV	±(0.8%+2 digit)
	V	60.00mV / 600.0mV / 6.000V / 60.00V	1mV	±(0.8%+2 digit)
	V	600.0V / 750V	0.1V	±(1%+3 digit)
DC Current	μA	600.0μA	0.1μA	±(0.8%+2 digit)
	mA	600.0μA / 6.000mA / 60.00mA / 600.0mA / 6.000A	0.01mA	±(0.8%+2 digit)
	A	20.00A	1mA	±(1.2%+3 digit)
AC Current	μA	600.0μA	0.1μA	±(1%+3 digit)
	mA	600.0μA / 6.000mA / 60.00mA / 600.0mA / 6.000A	0.01mA	±(0.8%+2 digit)
	A	20.00A	1mA	±(2%+3 digit)
Resistance		600.0Ω / 6.000kΩ / 60.00kΩ / 600.0kΩ / 6.000MΩ / 10.00MΩ	0.1Ω	±(0.8%+2 digit)
Resistance		60.00MΩ	0.01MΩ	±(2%+3 digit)
Capacitance		40.00nF	0.01nF	±(2.5%+3 digit)
		400.0nF / 4.000μF / 40.00μF	0.1nF	±(2.5%+3 digit)
		400.0μF / 4000μF	0.1μF	±(3%+5 digit)
Frequency		9.999Hz / 99.99Hz / 999.9Hz / 9.999kHz / 99.99kHz / 999.9kHz / 9.999MHz	1mHz	±(0.8%+2 digit)
Duty Ratio		0.1% - 99.9% (typical value: Vrms=1V, f=1kHz)	0.1%	±(1.2%+3 digit)
Duty Ratio		0.1% - 99.9% (≥1kHz)	0.1%	±(2.5%+2 digit)
Temperature		-50℃ - +400℃	1°C	±(2.5%+3 digit)
Temperature		-58°F - +752°F	1°F	±(4.5%+5 digit)
Display		6000 - count

Auto ranging	√	Max / Min Value	√
Offline Recording Function	available in B35+, and B35T+	Bluetooth Module	available in B35, B35+, B35T and B35T+
Recording Duration	168 hours (7 days)
Record Length	10,000 points	True RMS	available in D35T, B35T, and B35T+
LCD Backlight	√	Simulated Chart	√
Diode Test	√	Input Protection	√
Audion Test	√	Input Impedance	10MΩ
Auto Power-off	√	LCD Size	69 x 52 mm
On-off Warning	√	Display Area	67 x 46 mm (effective area 66 x 45 mm)
Low-battery Indicator	√	Battery	3V (2.5V x 2)
Data Hold	√	Dimension (W x H x D)	85 x 185 x 30 (mm)
Relative Measurement	√	Device Weight	0.32 kg
